SY7102 - 2.5A Step Up Regulator

Datasheet Summary

Description

SY7102 is a high efficiency boost regulator targeted for general step-up applications.

The device integrates a low RDS(0N) switch to minnimize the conduction loss.

Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.

Features

  • Wide input range:2-6V.
  • 1MHz switching frequency.
  • Minimum on time: 100ns typical.
  • Minimum off time: 100ns typical.
  • Max output voltage: 6V.
  • Low RDS(0N): 120mΩ.
  • RoHS Compliant and Halogen Free.
  • Compact package: SOT23-6.

📥 Download Datasheet

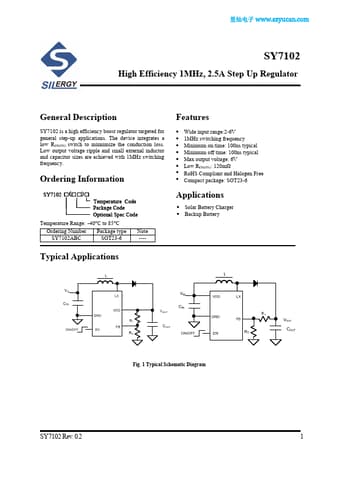

Datasheet preview – SY7102

Datasheet Details

Part number SY7102
Manufacturer Silergy
File Size 368.78 KB
Description 2.5A Step Up Regulator
Datasheet download datasheet SY7102 Datasheet
Additional preview pages of the SY7102 datasheet.
