SY7152 - High Efficiency 1MHz 2A Step-Up Regulator

Datasheet Summary

Description

The SY7152 is a high efficiency boost regulator targeted for general step-up applications.

( ) Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C Ordering Number SY7152ABC Package type SOT23-6 Note 2A

Features

  • Wide input range: 3-8V bias input, 16Vout max.
  • 1MHz switching frequency.
  • Minimum on time: 100ns typical.
  • Minimum off time: 100ns typical.
  • Low RDS(ON): 150mΩ.
  • RoHS Compliant and Halogen Free.
  • Accurate Reference: 0.6VREF.
  • Compact package: SOT23-6.

📥 Download Datasheet

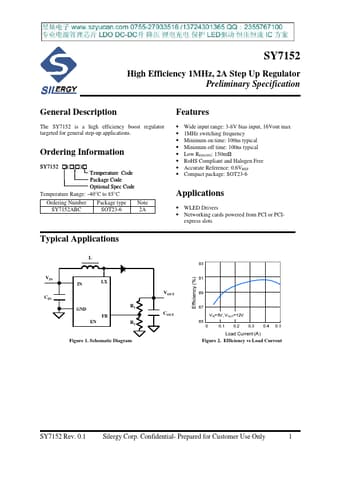

Datasheet preview – SY7152

Datasheet Details

Part number SY7152
Manufacturer Silergy
File Size 941.05 KB
Description High Efficiency 1MHz 2A Step-Up Regulator
Datasheet download datasheet SY7152 Datasheet
Additional preview pages of the SY7152 datasheet.

📁 Similar Datasheet

  • SY7100 - Bluetooth headset charging case wireless charging solution (TPS)
  • SY7120 - 5 Port Solenoid Valves (SMC)
  • SY7140 - 5 Port Solenoid Valves (SMC)
  • SY7060 - Flexibles Montagesystem (SMC)
  • SY7220 - 2 position single (SMC)
  • SY7320 - 2 position single (SMC)
  • SY733021U - 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator (Micrel Semiconductor)
  • SY7420 - 2 position single (SMC)
  • SY74PT - Photo Transistors (Shian Yih Electronic)
  • SY7520 - 2 position single (SMC)
Other Datasheets by Silergy
  • SY7152A - High Efficiency 1MHz 2A Step-Up Regulator
  • SY7102 - 2.5A Step Up Regulator
  • SY7104 - 1MHz Step Up Regulator
  • SY7120 - Synchronous Step Up Regulator
  • SY7065 - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7065A - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7066 - 1.8V Minimum Input and 5.5V Maximum Output 6A Peak Current Synchronous Boost
  • SY7069 - 1MHz Synchronous Boost

Full PDF Text Transcription

Click to expand full text
SY7152 High Efficiency 1MHz, 2A Step Up Regulator Preliminary Specification General Description The SY7152 is a high efficiency boost regulator targeted for general step-up applications. Ordering Information SY7152 □(□□)□ Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C Ordering Number SY7152ABC Package type SOT23-6 Note 2A Features • Wide input range: 3-8V bias input, 16Vout max • 1MHz switching frequency • Minimum on time: 100ns typical • Minimum off time: 100ns typical • Low RDS(ON): 150mΩ • RoHS Compliant and Halogen Free • Accurate Reference: 0.6VREF • Compact package: SOT23-6 Applications • WLED Drivers • Networking cards powered from PCI or PCI- express slots Typical Applications L VIN CIN IN LX GND EN FB R1 R2 Figure 1.
