SY7104 - 1MHz Step Up Regulator

Datasheet Summary

Description

SY7104 is a high efficiency, current-mode control Boost DC to DC regulator with an integrated 90mΩ RDS(ON) N-channel MOSFET.

The fixed 1MHz switching frequency and internal compensation reduce external component count and save the PCB space.

Features

  • Wide input range: 2-6V 1MHz switching frequency Minimum on time: 100ns typical Minimum off time: 100ns typical Max output voltage: 6V Internal 4A switch Internal soft start Over temperature protection Over current protection Low RDS(0N): 90mΩ typical RoHS Compliant and Halogen Free Compact package: DFN3х 3-10 Ordering Information SY7104.
  • (.
  • ).
  • Te.

📥 Download Datasheet

Datasheet preview – SY7104

Datasheet Details

Part number SY7104
Manufacturer Silergy
File Size 0.99 MB
Description 1MHz Step Up Regulator
Datasheet download datasheet SY7104 Datasheet
Additional preview pages of the SY7104 datasheet.

📁 Similar Datasheet

  • SY7100 - Bluetooth headset charging case wireless charging solution (TPS)
  • SY7120 - 5 Port Solenoid Valves (SMC)
  • SY7140 - 5 Port Solenoid Valves (SMC)
  • SY7060 - Flexibles Montagesystem (SMC)
  • SY7220 - 2 position single (SMC)
  • SY7320 - 2 position single (SMC)
  • SY733021U - 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator (Micrel Semiconductor)
  • SY7420 - 2 position single (SMC)
  • SY74PT - Photo Transistors (Shian Yih Electronic)
  • SY7520 - 2 position single (SMC)
Other Datasheets by Silergy
  • SY7102 - 2.5A Step Up Regulator
  • SY7120 - Synchronous Step Up Regulator
  • SY7152 - High Efficiency 1MHz 2A Step-Up Regulator
  • SY7152A - High Efficiency 1MHz 2A Step-Up Regulator
  • SY7065 - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7065A - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7066 - 1.8V Minimum Input and 5.5V Maximum Output 6A Peak Current Synchronous Boost
  • SY7069 - 1MHz Synchronous Boost

Full PDF Text Transcription

Click to expand full text

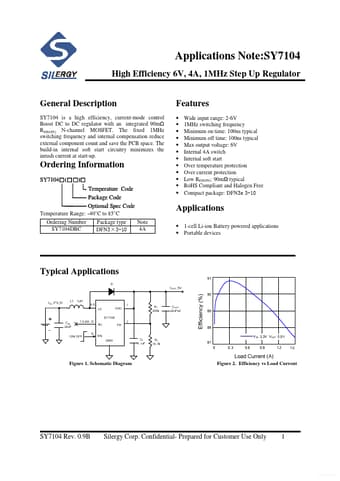

Applications Note:SY7104 High Efficiency 6V, 4A, 1MHz Step Up Regulator General Description SY7104 is a high efficiency, current-mode control Boost DC to DC regulator with an integrated 90mΩ RDS(ON) N-channel MOSFET. The fixed 1MHz switching frequency and internal compensation reduce external component count and save the PCB space. The build-in internal soft start circuitry minimizes the inrush current at start-up.
