SY7152A - High Efficiency 1MHz 2A Step-Up Regulator

Datasheet Summary

Description

The SY7152A is a high efficiency, current-mode control Boost regulator.

The device integrates a 130mΩ low RDS(ON) N-channel MOSFET for high efficiency.

The fixed 1MHz switching frequency and internal compensation reduce external components size and count.

Features

  • Wide input range: 3-8V bias input, 16Vout max.
  • 1MHz switching frequency.
  • Minimum on time: 100ns typical.
  • Minimum off time: 100ns typical.
  • Low RDS(ON): 130mΩ.
  • RoHS Compliant and Halogen Free.
  • Accurate Reference: 0.6VREF.
  • Compact package: SOT23-6.

📥 Download Datasheet

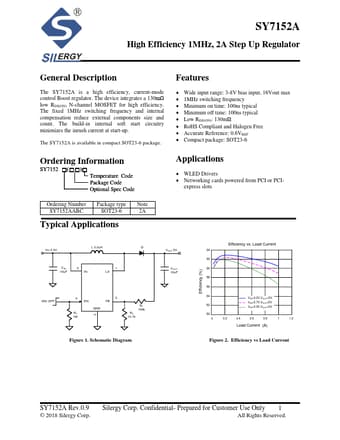

Datasheet preview – SY7152A

Datasheet Details

Part number SY7152A
Manufacturer Silergy
File Size 1.06 MB
Description High Efficiency 1MHz 2A Step-Up Regulator
Datasheet download datasheet SY7152A Datasheet
Additional preview pages of the SY7152A datasheet.
