AS225-313LF

PHEMT GaAs IC 1W Low-Loss 0.1 to 6GHz SPDT Switch

AS225-313LF Features

* Positive low voltage control (0/3 V)

* Low insertion loss (0.6 dB, 0.1 to 6 GHz)

* High linearity (IIP3 = +53 dBm @ 3 V)

* PHEMT process

* Miniature QFN (6-pin, 2 x 3 mm) package (MSL1, 260 C per JEDEC J-STD-020) Skyworks GreenTM products are compliant with all applicable legi

AS225-313LF General Description

The AS225-313LF is a 0.1 to 6 GHz PHEMT GaAs IC single-pole, double-throw (SPDT) antenna switch. Designed for WLAN applications, this device is capable of switching 1 W microwave signals with 3 V control voltage while maintaining high-linearity performance. The switch covers the entire 802.11a, b, a.

AS225-313LF Datasheet (297.07 KB)

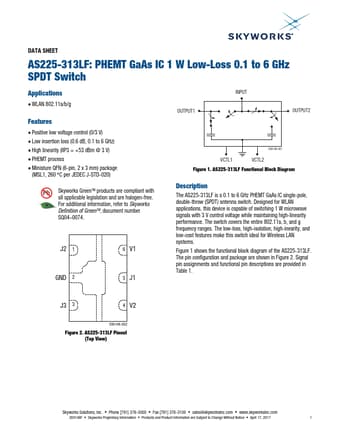

Preview of AS225-313LF PDF

Datasheet Details

Part number:

AS225-313LF

Manufacturer:

Skyworks Solutions

File Size:

297.07 KB

Description:

Phemt gaas ic 1w low-loss 0.1 to 6ghz spdt switch.
