Si8421 - Single and Dual-Channel Digital Isolator

Product Overview

Skyworks Solutions

📥 Download Datasheet

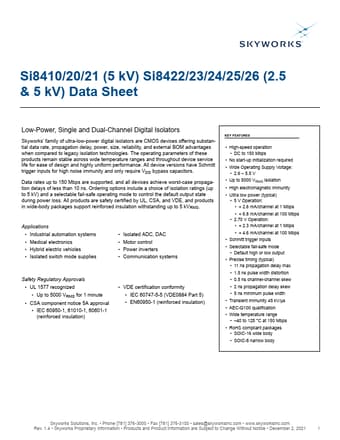

Si8421 Single and Dual-Channel Digital Isolator by Skyworks Solutions - Datasheet Preview — Datasheet preview – Si8421

Datasheet Details

Part number	Si8421
Manufacturer	Skyworks Solutions
File Size	1.58 MB
Description	Single and Dual-Channel Digital Isolator
Datasheet	Si8421 Datasheet
Note	This datasheet PDF includes multiple part numbers: Si8421, Si8410. Please refer to the document for exact specifications by model.
Additional preview pages of the Si8421 datasheet.

Product details

Features

List 1. Features List.
High-speed operation.
DC to 150 Mbps.
No start-up initialization required.
Wide Operating Supply Voltage:.
2.6.
5.5 V.
Up to 5000 VRMS isolation.
High electromagnetic immunity.
Ultra low power (typical).
5 V Operation:.
< 2.6 mA/channel at 1 Mbps.
< 6.8 mA/channel at 100 Mbps.
2.70 V Operation:.
< 2.3 mA/channel at 1 Mbps.
< 4.6 mA/channel.
