SSD1812 - LCD Segment / Common Driver

SSD1812 Description

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA Product Preview LCD Segment / Common Driver with Controller CMOS SSD1812 is a single-chip CMOS LCD drive.

SSD1812 Applications

* requiring a long operation period and a compact size.
* Single Supply Operation, 1.8 V - 3.5V
* Minimum -12.0V LCD Driving Output Voltage
* Low Current Sleep Mode
* On-Chip Voltage Generator / External Power Supply
* 2X / 3X / 4X On-Chip DC-DC Converter

📥 Download Datasheet

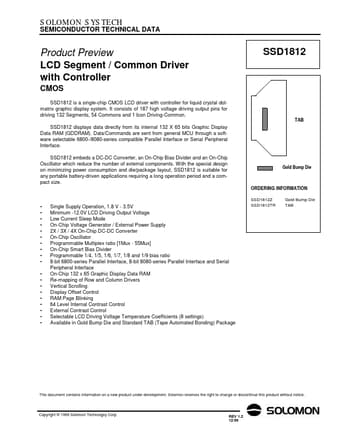

Preview of SSD1812 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSD1812
Manufacturer
Solomon Systech
File Size
434.29 KB
Datasheet
SSD1812_ETC.pdf
Description
LCD Segment / Common Driver
