SSD1813 LCD Segment / Common Driver

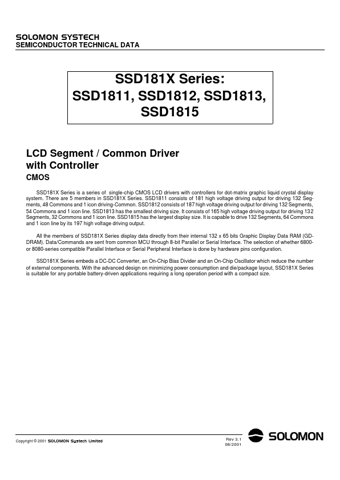

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD181X Series: SSD1811, SSD1812, SSD1813, SSD1815 LCD Segment / Common Driver with Controller CMOS SSD181X Series is a series of single-chip CMOS LCD drivers with controllers for dot-matrix graphic liquid crystal display system. There are 5 members in SSD181X Series. SSD1811 consists of 181 high voltage driving output for driving 132 Segments, 48 Commons and 1 icon driving-Common. SSD1812 consists of 187 high voltage driving output for driving 132 Se.

SSD1813 Features

* Dot-matrix Display with separated Icon Line

* SSD1811: 132 x 48 + 1 Icon Line

* SSD1812: 132 x 54 + 1 Icon Line

* SSD1813: 132 x 32 + 1 Icon Line

* SSD1815: 132 x 64 + 1 Icon Line Single Supply Operation, 1.8 V - 3.5V Minimum -12.0V LCD Driving Output Voltage Low Curr

SSD1811-SolomonSystech.pdf

SSD1813 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSD1813, SSD1811. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SSD1813, SSD1811

Manufacturer:

Solomon Systech

File Size:

512.54 KB

Description:

Lcd segment / common driver.

Note:

This datasheet PDF includes multiple part numbers: SSD1813, SSD1811.
Please refer to the document for exact specifications by model.
