SSD1815 - LCD Segment / Common Driver

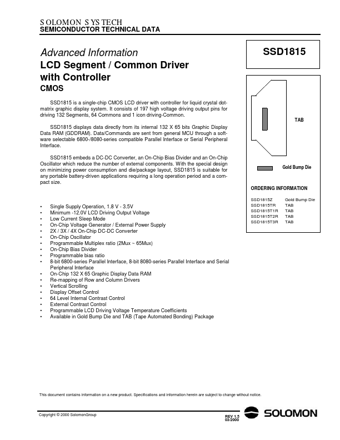

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA Advanced Information LCD Segment / Common Driver with Controller CMOS SSD1815 is a single-chip CMOS LCD driver with controller for liquid crystal dotmatrix graphic display system.

It consists of 197 high voltage driving output pins for driving 132 Segments, 64 Commons and 1 icon driving-Common.

SSD1815 displays data directly from its internal 132 X 65 bits Graphic Display Data RAM (GDDRAM).

Data/Commands are sent from general MCU through a software se

SSD1815_ETC.pdf

Preview of SSD1815 PDF

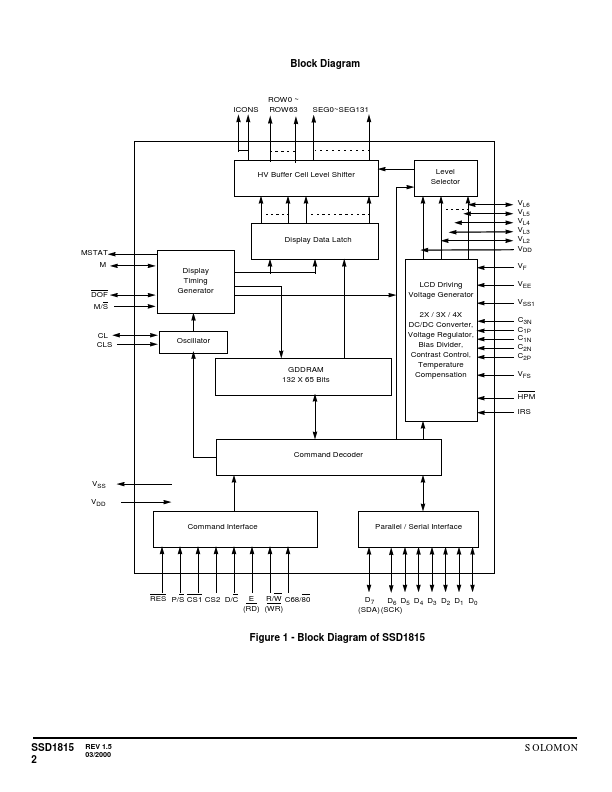

SSD1815 Datasheet Preview Page 2 SSD1815 Datasheet Preview Page 3

Datasheet Details

Part number:

SSD1815

Manufacturer:

Solomon Systech

File Size:

856.81 KB

Description:

Lcd segment / common driver.
