SSD1818 LCD Segment / Common Driver

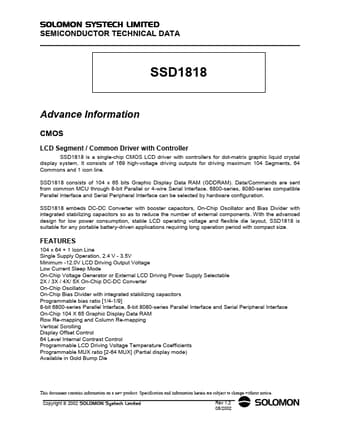

SOLOMON SYSTECH LIMITED SEMICONDUCTOR TECHNICAL DATA SSD1818 Advance Information CMOS LCD Segment / Common Driver with Controller SSD1818 is a single-chip CMOS LCD driver with controllers for dot-matrix graphic liquid crystal display system. It consists of 169 high-voltage driving outputs for driving maximum 104 Segments, 64 Commons and 1 icon line. SSD1818 consists of 104 x 65 bits Graphic Display Data RAM (GDDRAM). Data/Commands are sent from common MCU through 8-bit Parallel or 4-wire Serial.

SSD1818 Features

* 104 x 64 + 1 Icon Line Single Supply Operation, 2.4 V - 3.5V Minimum -12.0V LCD Driving Output Voltage Low Current Sleep Mode On-Chip Voltage Generator or External LCD Driving Power Supply Selectable 2X / 3X / 4X/ 5X On-Chip DC-DC Converter On-Chip Oscillator On-Chip Bias Divider with integrated sta
