CXA3235 - All Band TV Tuner IC with On-chip PLL

Sony Corporation

📥 Download Datasheet

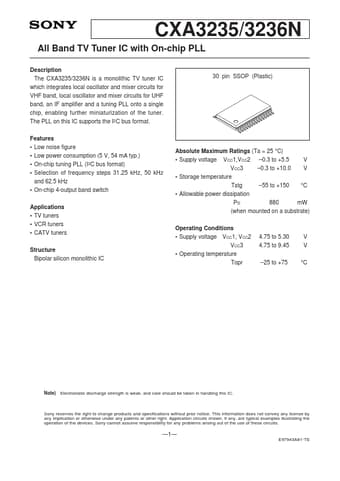

CXA3235 Datasheet Preview — Preview of CXA3235 PDF

Datasheet Details

Part number: CXA3235
Manufacturer: Sony Corporation
File Size: 313.05 KB
Datasheet: CXA3235_SonyCorporation.pdf
Description: All Band TV Tuner IC with On-chip PLL

CXA3235 Product details

Description

The CXA3235/3236N is a monolithic TV tuner IC which integrates local oscillator and mixer circuits for VHF band, local oscillator and mixer circuits for UHF band, an IF amplifier and a tuning PLL onto a single chip, enabling further miniaturization of the tuner.

Features

Low noise figure.
Low power consumption (5 V, 54 mA typ. ).
On-chip tuning PLL (I2C bus format).
Selection of frequency steps 31.25 kHz, 50 kHz and 62.5 kHz.
On-chip 4-output band switch.
