CXA3236N Datasheet - Sony Corporation

All Band TV Tuner IC with On-chip PLL

CXA3236N Features

* Low noise figure

* Low power consumption (5 V, 54 mA typ.)

* On-chip tuning PLL (I2C bus format)

* Selection of frequency steps 31.25 kHz, 50 kHz and 62.5 kHz

* On-chip 4-output band switch Applications

* TV tuners

* VCR tuners

* CATV

CXA3236N General Description

The CXA3235/3236N is a monolithic TV tuner IC which integrates local oscillator and mixer circuits for VHF band, local oscillator and mixer circuits for UHF band, an IF amplifier and a tuning PLL onto a single chip, enabling further miniaturization of the tuner. The PLL on this IC supports the I2C b.

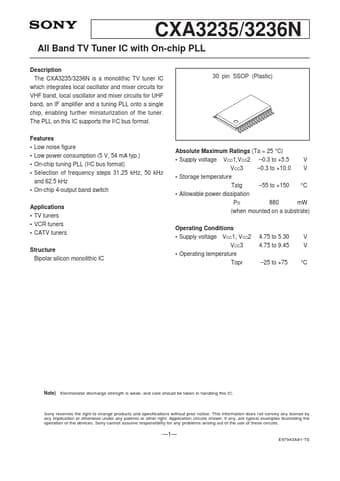

CXA3236N Datasheet (313.05 KB)

CXA3236N Datasheet Preview — Preview of CXA3236N PDF

Datasheet Details

Part number:

CXA3236N

Manufacturer:

Sony Corporation

File Size:

313.05 KB

Description:

All band tv tuner ic with on-chip pll.
