CXG1008N Datasheet, Switch, Sony Corporation

CXG1008N Features

  • Switch
  • Positive voltage supply only
  • Ultra high isolation, typically 58 dB (GSM 900)
  • Low insertion loss, typically 0.7 dB at 20 dBm input level (GSM 900)

PDF File Details

Part number:

CXG1008N

Manufacturer:

Sony Corporation

File Size:

92.54kb

Download:

📄 Datasheet

Description:

High isolation spdt switch. The CXG1008N is a high isolation SPDT switch suitable for Digital Cellular applications, Cable TV and so on. This device is part of a

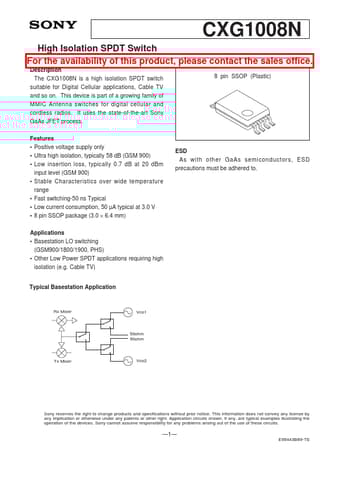

Datasheet Preview: CXG1008N 📥 Download PDF (92.54kb)
Page 2 of CXG1008N Page 3 of CXG1008N

CXG1008N Application

  • Applications Cable TV and so on. This device is part of a growing family of MMIC Antenna switches for digital cellular and cordless radios. It uses
