CXG1100TN Datasheet, Switch, Sony

CXG1100TN Features

  • Switch
  • Low insertion loss: 0.35dB @900MHz
  • High linearity: IIP3 (Typ.) = 60dBm
  • 1 CMOS compatible control line
  • Small package size: 10-pin TSSOP Applicati

PDF File Details

Part number:

CXG1100TN

Manufacturer:

Sony

File Size:

52.42kb

Download:

📄 Datasheet

Description:

High power dpdt switch. The CXG1100TN is a high power DPDT switch MMIC. This IC can be used in wireless communi-cation systems, for example, dual-band CDMA h

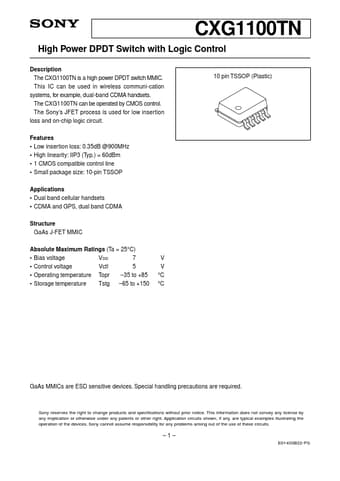

Datasheet Preview: CXG1100TN 📥 Download PDF (52.42kb)
Page 2 of CXG1100TN Page 3 of CXG1100TN

CXG1100TN Application

  • Applications
  • Dual band cellular handsets
  • CDMA and GPS, dual band CDMA Structure GaAs J-FET MMIC Absolute Maximum Ratings (Ta =
