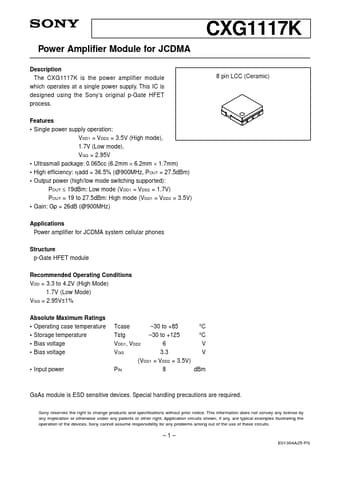

CXG1117K Power Amplifier Module for JCDMA

CXG1117K Features

* Single power supply operation: VDD1 = VDD2 = 3.5V (High mode), 1.7V (Low mode), VGG = 2.95V

* Ultrasmall package: 0.065cc (6.2mm × 6.2mm × 1.7mm)

* High efficiency: ηadd = 36.5% (@900MHz, POUT = 27.5dBm)

* Output power (high/low mode switching supported): POUT ≤ 19d

Datasheet Details

CXG1117K

Sony Corporation

69.91 KB

Power amplifier module for jcdma.
