CXG1122EN SP5T GSM Triple-Band/GPRS Antenna Switch

The CXG1122EN is one of a range of low insertion loss, high power MMIC antenna switches for GSM/ GPRS triple-band, dual-band (CXG1121TN) and applications. The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level. On-chip logic red.

CXG1122EN Features

* Insertion loss: (Tx) 0.5dB typ. at 34dBm (GSM900)

* 3 CMOS compatible control lines

* Low second harmonic:

* 40dBm typ. at 34dBm (GSM900)

* Small package size: 16-pin VSON (2.7mm × 3.5mm × 0.9mm) Applications Triple-band handsets using the combinations of fol

CXG1122EN_SonyCorporation.pdf

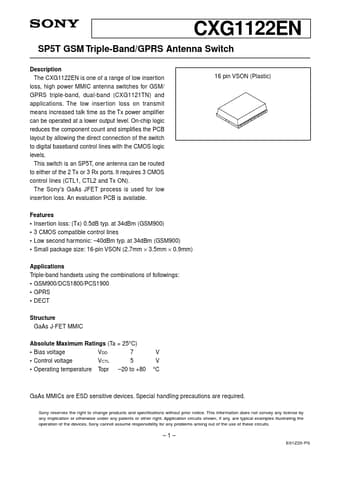

Preview of CXG1122EN PDF
