CXG1127ER Datasheet - Sony Corporation

CXG1127ER High Power 5 4 Antenna Switch MMIC with Integrated Control Logic for PDC Dual Phone

The CXG1127ER is a high power antenna switch MMIC for PDC 800MHz and 1.5GHz dual phone. The CXG1127ER is suited to connect 2Tx/3Rx to one of 4 antennas. The CXG1127ER has on-chip logic circuit for operation with 5 CMOS inputs. The Sony’s GaAs J-FET process is used for low insertion loss and low volt.

CXG1127ER Features

* Low insertion loss: 0.45dB @900MHz, 0.55dB @1.5GHz

* High linearity: Harmonic <

* 65dBc

* CMOS compatible input control

* Small package: 24-pin VQFN (4.0mm × 4.0mm) Applications 5 × 4 antenna switch for digital cellular such as PDC handsets Structure GaAs J-

CXG1127ER_SonyCorporation.pdf

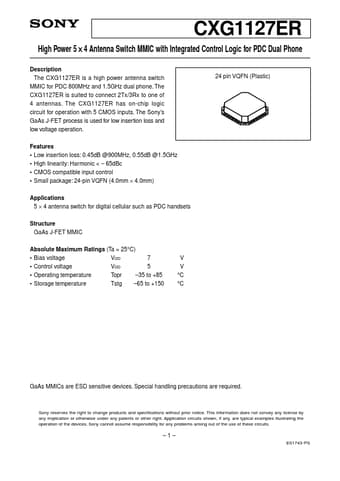

Preview of CXG1127ER PDF
CXG1127ER Datasheet Preview Page 2 CXG1127ER Datasheet Preview Page 3

Datasheet Details

Part number:

CXG1127ER

Manufacturer:

Sony Corporation

File Size:

70.93 KB

Description:

High power 5 4 antenna switch mmic with integrated control logic for pdc dual phone.
