CXG1101TN Datasheet, Application, Sony Corporation

CXG1101TN Features

• Application
• Low second harmonics <
    –31dBm at 29dBm @2.8V
• Low insertion loss: 0.3dB (Ant.
    – AMPS)
• Small package size: TSSOP-10pin (3.2mm

PDF File Details

Part number:

CXG1101TN

Manufacturer:

Sony Corporation

File Size:

54.25kb

Download:

📄 Datasheet

Description:

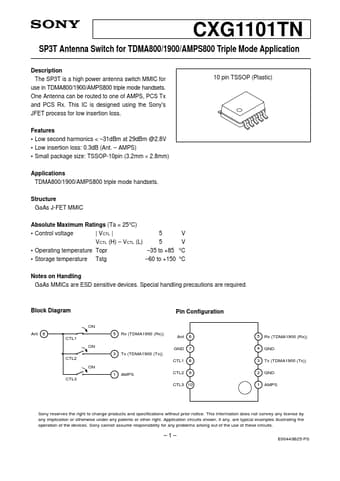

Sp3t antenna switch for tdma800/1900/amps800 triple mode application. The SP3T is a high power antenna switch MMIC for use in TDMA800/1900/AMPS800 triple mode handsets. One Antenna can be routed to one o

CXG1101TN Application

• Applications TDMA800/1900/AMPS800 triple mode handsets. Structure GaAs J-FET MMIC Absolute Maximum Ratings (Ta = 25°C)
• Control voltage | V
