CXG1108K - Power Amplifier Module for JCDMA

Product Overview

Sony Corporation

📥 Download Datasheet

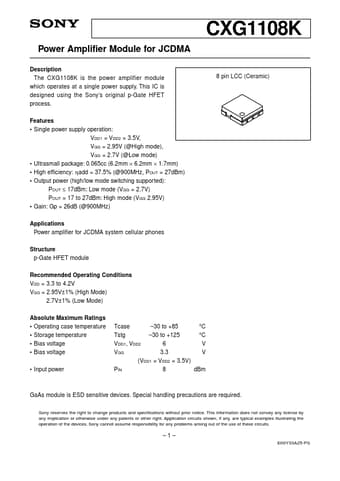

CXG1108K Power Amplifier Module for JCDMA by Sony Corporation - Datasheet Preview — Datasheet preview – CXG1108K

Datasheet Details

Part number	CXG1108K
Manufacturer	Sony Corporation
File Size	69.45 KB
Description	Power Amplifier Module for JCDMA
Datasheet	CXG1108K Datasheet
Additional preview pages of the CXG1108K datasheet.

Product details

Description

The CXG1108K is the power amplifier module which operates at a single power supply.

Features

Single power supply operation: VDD1 = VDD2 = 3.5V, VGG = 2.95V (@High mode), VGG = 2.7V (@Low mode).
Ultrasmall package: 0.065cc (6.2mm × 6.2mm × 1.7mm).
High efficiency: ηadd = 37.5% (@900MHz, POUT = 27dBm).
Output power (high/low mode switching supported): POUT ≤ 17dBm: Low mode (VGG = 2.7V) POUT = 17 to 27dBm: High mode (VGG 2.95V).
Gain: Gp = 26dB (@900MHz).
