CXG1111EN

800MHz Band Receive Mixer

Sony Corporation

Download Datasheet (92.96 KB)

CXG1111EN Datasheet Preview — Preview of CXG1111EN Datasheet

Datasheet Details

Part number:

CXG1111EN

Manufacturer:

Sony Corporation

File Size:

92.96 KB

Description:

800mhz band receive mixer.

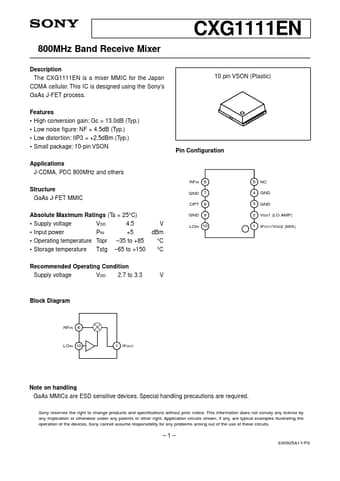

CXG1111EN 800MHz Band Receive Mixer Description The CXG1111EN is a mixer MMIC for the Japan CDMA cel.
The CXG1111EN is a mixer MMIC for the Japan CDMA cellular. This IC is designed using the Sony’s GaAs.

✔ CXG1111EN Features

High conversion gain: Gc = 13.0dB (Typ.)
Low noise figure: NF = 4.5dB (Typ.)
Low distortion: IIP3 = +2.5dBm (Typ.)
Small package: 10-pin VSON Applications J-CDMA,

✔ CXG1111EN Application

J-CDMA, PDC 800MHz and others RFIN 6 7 8 9 5 4 3 2 1 NC GND GND VDD1 (LO AMP) IFOUT/VDD2 (MIX) 10 pin VSON
