CXG1210UR Datasheet - Sony

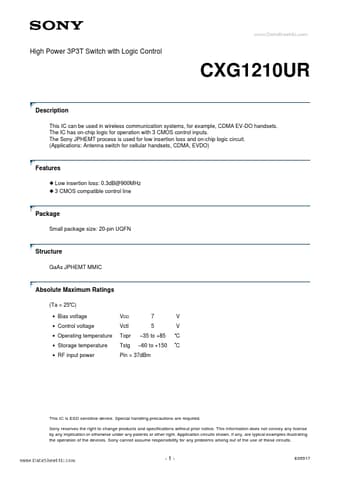

CXG1210UR High Power 3P3T Switch

This IC can be used in wireless communication systems, for example, CDMA EV-DO handsets. The IC has on-chip logic for operation with 3 CMOS control inputs. The Sony JPHEMT process is used for low insertion loss and on-chip logic circuit. (Applications: Antenna switch for cellular handsets, CDMA, EVD.

CXG1210UR Features

* Low insertion loss: 0.3dB@900MHz 3 CMOS compatible control line Package Small package size: 20-pin UQFN Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)

* Bias voltage

* Control voltage

* Operating temperature

* Storage temperature

* RF input power VDD Vctl

CXG1210UR_Sony.pdf
