CXG1213XR

High Power DPDT Switch

Sony

CXG1213XR Features

* Low insertion loss 2 CMOS compatible control Package Small package size: 12-pin XQFN Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)

* Bias voltage

* Control voltage

* Operating temperature

* Storage temperature VDD Vctl Topr Tstg 7 5

* 35 to +85

CXG1213XR General Description

This CXG1213XR can be used in wireless communication systems, for example, W-CDMA handsets. The IC has on-chip logic for operation with 2 CMOS control inputs. The Sony JPHEMT process is used for low insertion loss and on-chip logic circuit. (Applications: Antenna switch for cellular handsets, dual-b.

CXG1213XR Datasheet (207.67 KB)

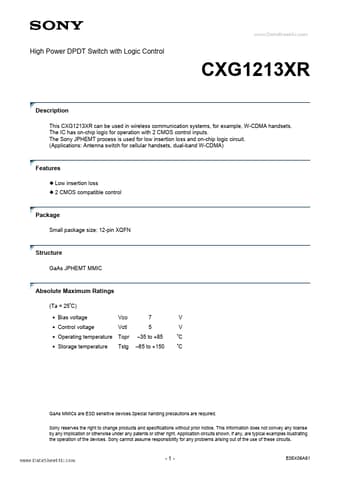

CXG1213XR Datasheet Preview — Preview of CXG1213XR PDF

Datasheet Details

Part number:

CXG1213XR

Manufacturer:

Sony

File Size:

207.67 KB

Description:

High power dpdt switch.
