CXG1224XR - SP4TSP4T Antenna Switch

CXG1224XR Description

SP4T+SP4T Antenna Switch for GSM/UMTS Preliminary Preliminary CXG1224XR .
The CXG1224XR is a high power SP4T+SP4T antenna switch for GSM/UMTS applications.

CXG1224XR Features

* ‹ Insertion loss (Tx1) 0.35dB (Typ. ) @34dBm (GSM900) Package Small and low height package size: 24-pin XQFN (2.7mm × 3.5mm × 0.4mm (Max. )) Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)
* Bias voltage
* Control voltage
* Input power max. (Tx1)
* Input power max. (

CXG1224XR Applications

* The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level. On chip logic reduces component count and simplifies PCB layout by allowing direct connection of the switch to digital baseband control lines with CMOS logic levels. It re

📥 Download Datasheet

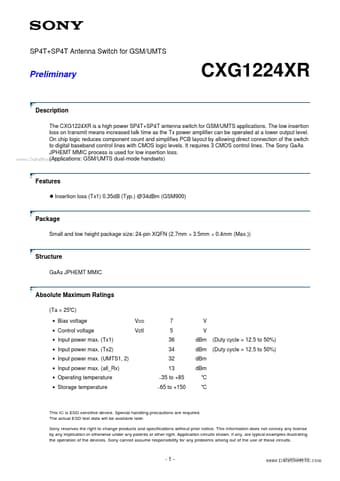

Preview of CXG1224XR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXG1224XR
Manufacturer
Sony
File Size
124.17 KB
Datasheet
CXG1224XR_Sony.pdf
Description
SP4TSP4T Antenna Switch
