CXG1009TN Datasheet, Switch, Sony Corporation

CXG1009TN Features

  • Switch
  • Single positive control supply operation
  • Insertion Loss 0.7 dB (Typ.) @1.0 GHz, Vctl (H)=3 V 0.8 dB (Typ.) @2.0 GHz, Vctl (H)=3 V
  • High Isolation 56 dB (Typ

PDF File Details

Part number:

CXG1009TN

Manufacturer:

Sony Corporation

File Size:

54.55kb

Download:

📄 Datasheet

Description:

High isolation spdt switch. The CXG1009TN is a high Isolation SPDT (Single Pole Dual Throw) switch MMIC for personal communication, cable TV and so on. This IC i

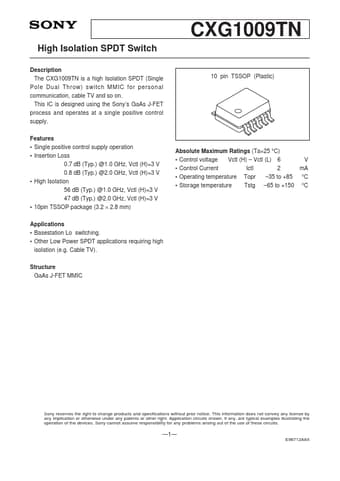

Datasheet Preview: CXG1009TN 📥 Download PDF (54.55kb)
Page 2 of CXG1009TN Page 3 of CXG1009TN

CXG1009TN Application

  • Applications
  • Basestation Lo switching.
  • Other Low Power SPDT applications requiring high isolation (e.g. Cable TV). Structure GaA
