CXG1212UR Datasheet, Switch, Sony

CXG1212UR Features

  • Switch ‹ Low insertion loss: 0.3dB@900MHz ‹ 3 CMOS compatible control line Package Small package size: 20-pin UQFN Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)

PDF File Details

Part number:

CXG1212UR

Manufacturer:

Sony

File Size:

99.93kb

Download:

📄 Datasheet

Description:

High power 3p3t switch. This IC can be used in wireless communication systems, for example, CDMA EV-DO handsets. The IC has on-chip logic for operation with

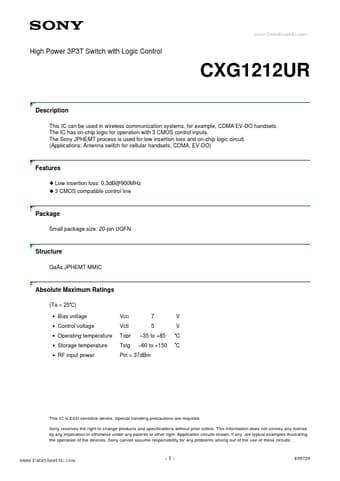

Datasheet Preview: CXG1212UR 📥 Download PDF (99.93kb)
Page 2 of CXG1212UR Page 3 of CXG1212UR

CXG1212UR Application

  • Applications Antenna switch for cellular handsets, CDMA, EV-DO) Features ‹ Low insertion loss: 0.3dB@900MHz ‹ 3 CMOS compatible control line Pack
