CXG1215UR

High Power DP3T Switch

Sony

CXG1215UR Features

* Low insertion loss: 0.35dB@900MHz, 0.5dB@2GHz 3 CMOS compatible control line Package Small package size: 16-pin UQFN Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)

* Input power max (RF port)

* Bias voltage

* Control voltage

* Operating temperature

* Stora

CXG1215UR General Description

The CXG1215UR can be used in wireless communication systems, for example, dual-band CDMA handsets. This IC has on-chip logic for operation with 3 COMS control inputs. The Sony JPHEMT process is used for low insertion loss and on-chip logic circuit. (Applications: Antenna switch for cellular handsets.

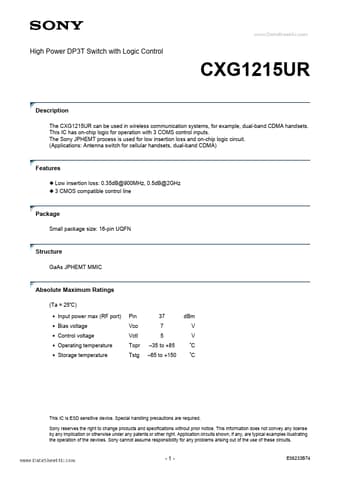

CXG1215UR Datasheet (157.60 KB)

CXG1215UR Datasheet Preview — Preview of CXG1215UR PDF

Datasheet Details

Part number:

CXG1215UR

Manufacturer:

Sony

File Size:

157.60 KB

Description:

High power dp3t switch.
