CXG1228XR - SP8T Antenna Switch

CXG1228XR Description

SP8T Antenna Switch for GSM/UMTS CXG1228XR .
The CXG1228XR is a high power SP8T antenna switch for GSM/UMTS applications.

CXG1228XR Features

* ‹ Insertion loss (Tx1) 0.35dB (Typ. ) @34dBm (GSM 900) Package Small and low height package size: 20-pin XQFN (2.7mm × 2.7mm × 0.4mm (Max. )) Structure GaAs JPHEMT MMIC This IC is ESD sensitive device. Special handling precautions are required. The actual ESD test data will be available later. -1-

CXG1228XR Applications

* The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level. On chip logic reduces component count and simplifies PCB layout by allowing direct connection of the switch to digital baseband control lines with CMOS logic levels. It re

📥 Download Datasheet

Preview of CXG1228XR PDF

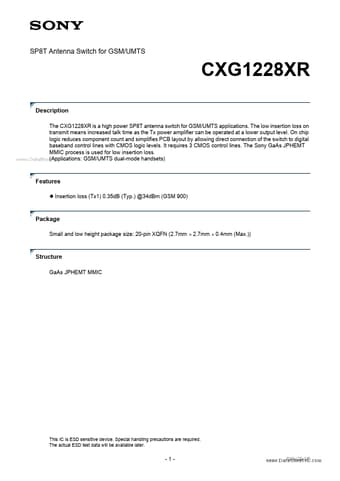

datasheet Preview Page 2 datasheet Preview Page 3
