CXG1125ER High Power 6 4 Antenna Switch MMIC with Integrated Control Logic for PDC Full Packet

The CXG1125ER is a high power antenna switch MMIC for PDC dual 800MHz and 1.5GHz. This IC is suited to connect 2Tx/3Rx to one of 4 antennas equipped with full packet mode. The CXG1125ER has on-chip logic circuit for operation with 6 CMOS inputs. The Sony's GaAs J-FET process is used for low insertio.

CXG1125ER Features

* Low insertion loss: 0.5dB @900MHz, 0.7dB @1.5GHz

* High linearity: Harmonic <

* 65dBc

* CMOS compatible input control

* Small package: 24-pin VQFN (4.0mm × 4.0mm) Applications 6 × 4 antenna switch for digital cellular such as PDC handsets Structure GaAs J-FE

CXG1125ER_SonyCorporation.pdf

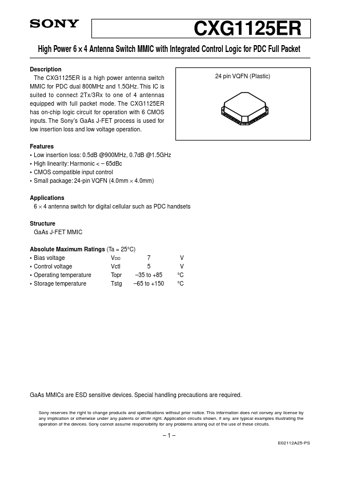

Preview of CXG1125ER PDF
CXG1125ER Datasheet Preview Page 2 CXG1125ER Datasheet Preview Page 3

Datasheet Details

Part number:

CXG1125ER

Manufacturer:

Sony Corporation

File Size:

83.67 KB

Description:

High power 6 4 antenna switch mmic with integrated control logic for pdc full packet.
