HMC0805, HMC0402, High Value Thick Film Chip Resistor

HMC Series High Value Thick Film Chip Resistor Stackpole Electronics, Inc.Resistive Product Solutions .

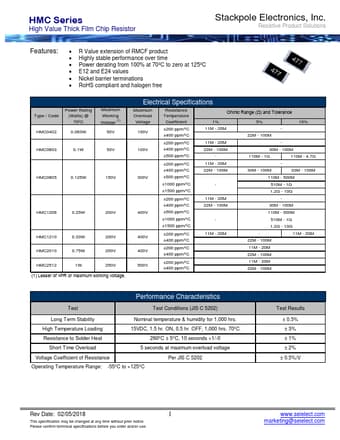

datasheet Preview Page 1 from Datasheet4u.com

HMC0402-Stackpole.pdf

HMC0805 Datasheet Preview — This datasheet PDF includes multiple part numbers: HMC0805, HMC0402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HMC0805, HMC0402

Manufacturer:

Stackpole

File Size:

120.39 KB

Description:

High Value Thick Film Chip Resistor

Note:

This datasheet PDF includes multiple part numbers: HMC0805, HMC0402.
Please refer to the document for exact specifications by model.

Features

* R Value extension of RMCF product
* Highly stable performance over time
* Power derating from 100% at 70ºC to zero at 125ºC
* E12 and E24 values
* Nickel barrier terminations
* RoHS compliant and halogen free Type / Code Power Rating (Watts) @ 70
