SNA-100 Datasheet - Stanford Microdevices

SNA-100 Cascadable GaAs MMIC Amplifier

Stanford Microdevices’ SNA-100 is a GaAs monolithic broadband amplifier (MMIC) in die form. This amplifier provides 12dB of gain when biased at 50mA and 4V. External DC decoupling capacitors determine low frequency response. The use of an external resistor allows for bias flexibility and stability. .

SNA-100 Features

* Cascadable 50 Ohm Gain Block

* 12dB Gain, +13dBm P1dB

* 1.5:1 Input and Output VSWR

* Operates From Single Supply

* Chip Back is Ground Applications

* Narrow and Broadband Linear Amplifiers

* Commercial and Industrial Applications 50 Ohm Gai

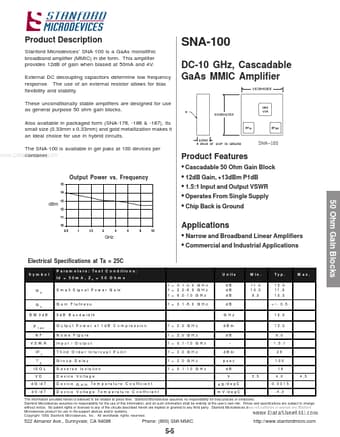

SNA-100_StanfordMicrodevices.pdf

SNA-100 Datasheet Preview — Preview of SNA-100 PDF

Datasheet Details

Part number:

SNA-100

Manufacturer:

Stanford Microdevices

File Size:

95.54 KB

Description:

Cascadable gaas mmic amplifier.
