SNA-676 CASCADABLE GAAS MMIC AMPLIFIER

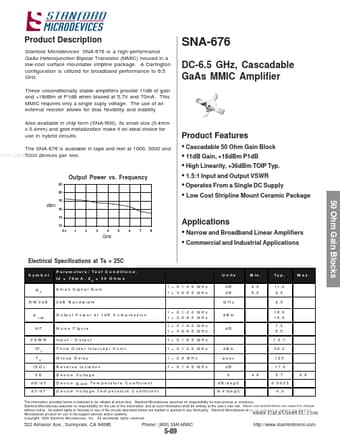

📥 Download Datasheet Datasheet Preview Page 1

Description

Product .
Stanford Microdevices’ SNA-676 is a high-performance GaAs Heterojunction Bipolar Transistor (MMIC) housed in a low-cost surface mountable stripline pa.

📥 Download Datasheet

Preview of SNA-676 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SNA-676
Manufacturer
Stanford Microdevices
File Size
122.80 KB
Datasheet
SNA-676_StanfordMicrodevices.pdf
Description
CASCADABLE GAAS MMIC AMPLIFIER

Features

* Cascadable 50 Ohm Gain Block
* 11dB Gain, +18dBm P1dB
* High Linearity, +36dBm TOIP Typ.
* 1.5:1 Input and Output VSWR
* Operates From a Single DC Supply

Applications

* Narrow and Broadband Linear Amplifiers
* Commercial and Industrial Applications dBm 16 14 12 0.1 1 2 3 4 5 6 7 8 GHz Electrical Specifications at Ta = 25C Sym bol P a r a m e te r s : T e s t C o n d itio n s : Id = 7 0 m A , Z 0 = 5 0 O h m s S m a ll S ig n a l G a in 3 d B B
