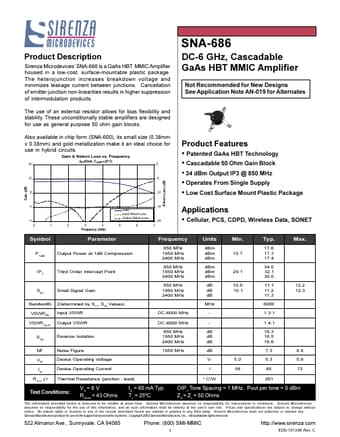

SNA-686 DC 6 GHZ CASCADABLE GAAS HBT MMIC AMPLIFIER

Sirenza Microdevices SNA-686 is a GaAs HBT MMIC Amplifier housed in a low-cost, surface-mountable plastic package. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of interm.

SNA-686 Features

* Patented GaAs HBT Technology Cascadable 50 Ohm Gain Block 34 dBm Output IP3 @ 850 MHz Operates From Single Supply Low Cost Surface Mount Plastic Package Applications Cellular, PCS, CDPD, Wireless Data, SONET Units dBm dBm dBm dBm dBm dBm dB dB dB M Hz 4 -18 0 0 1 2 3 4 Frequency (GHz)
