SNA-386 Datasheet - ETC

DC 3 GHZ CASCADABLE GAAS MMIC AMPLIFIER

SNA-386 Features

* Patented GaAs HBT Technology Cascadable 50 Ohm Gain Block 21dB Gain, +23dBm TOIP Operates From Single Supply Low Cost Surface Mount Plastic Package Applications PA Driver Amplifier Cellular, PCS, GSM, UMTS IF Amplifier Wireless Data, Satellite Units dB dB dB dB GHz dBm dBm dB dBm

SNA-386 General Description

Sirenza Microdevices SNA-386 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surfacemountable plastic package. At 1950 MHz. this amplifier provides 20dB of gain when biased at 35mA. The use of an external resistor allows for bias flexibility and stability. These unconditionally.

SNA-386 Datasheet (351.10 KB)

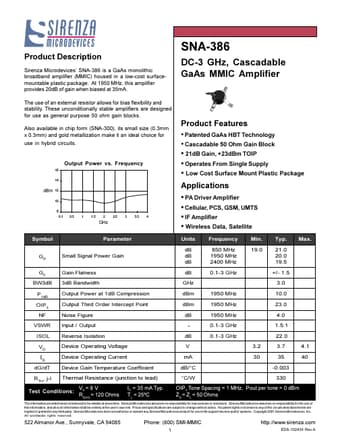

SNA-386 Datasheet Preview — Preview of SNA-386 PDF

Datasheet Details

Part number:

SNA-386

Manufacturer:

ETC

File Size:

351.10 KB

Description:

Dc 3 ghz cascadable gaas mmic amplifier.
