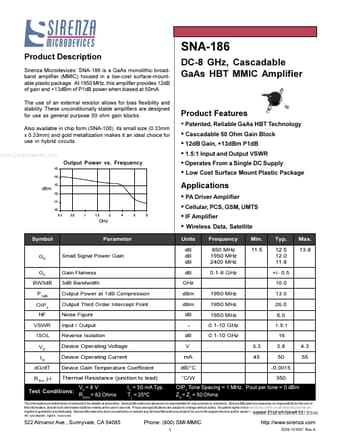

SNA-186 Datasheet, Amplifier, SIRENZA MICRODEVICES

SNA-186 Features

• Amplifier • Patented, Reliable GaAs HBT Technology • Cascadable 50 Ohm Gain Block • 12dB Gain, +13dBm P1dB • 1.5:1 Input and Output VSWR • Operates From a Single DC Supply • Low Cost Surface Moun

PDF File Details

Part number:

SNA-186

Manufacturer:

SIRENZA MICRODEVICES

File Size:

381.04kb

Download:

📄 Datasheet

Description:

Cascadable gaas hbt mmic amplifier. Sirenza Microdevices’ SNA-186 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface-mountable plastic package.

SNA-186 Application

• Applications • PA Driver Amplifier • Cellular, PCS, GSM, UMTS • IF Amplifier • Wireless Data, Satellite Units dB dB dB dB GHz dBm dBm dB dBm 13 12
