SNA-476 Datasheet - SIRENZA MICRODEVICES

Cascadable GaAs MMIC Amplifier

SNA-476 Features

* Cascadable 50 Ohm Gain Block

* 13dB Gain, +17dBm P1dB

* 1.5:1 Input and Output VSWR

* Operates From Single Supply

* Low Cost Stripline Mount Ceramic Package

* Hermetically Sealed 50 Ohm Gain Blocks Applications

* Narrow and Broadband Linear A

SNA-476 General Description

Stanford Microdevices’ SNA-476 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface mountable stripline ceramic package. This amplifier provides 13dB of gain when biased at 70mA and 5.0V. External DC decoupling capacitors determine low frequency response. The use of an extern.

SNA-476 Datasheet (118.03 KB)

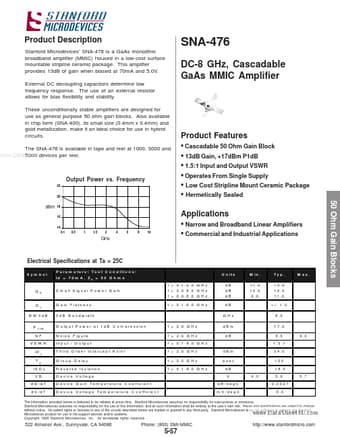

SNA-476 Datasheet Preview — Preview of SNA-476 PDF

Datasheet Details

Part number:

SNA-476

Manufacturer:

SIRENZA MICRODEVICES

File Size:

118.03 KB

Description:

Cascadable gaas mmic amplifier.
