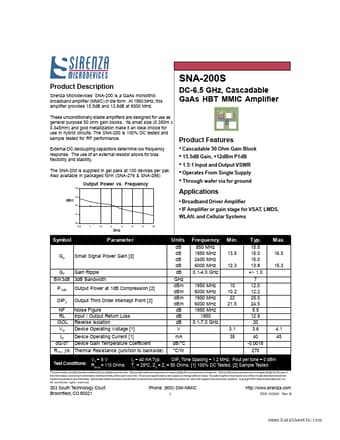

SNA-200S Datasheet, Amplifier, Sirenza Microdevices

SNA-200S Features

• Amplifier
• Cascadable 50 Ohm Gain Block
• 15.5dB Gain, +12dBm P1dB
• 1.5:1 Input and Output VSWR
• Operates From Single Supply
• Through wafer via for gro

PDF File Details

Part number:

SNA-200S

Manufacturer:

Sirenza Microdevices

File Size:

170.96kb

Download:

📄 Datasheet

Description:

Cascadable gaas hbt mmic amplifier. Sirenza Microdevices’ SNA-200 is a GaAs monolithic broadband amplifier (MMIC) in die form. At 1950 MHz, this amplifier provides 15.5d

SNA-200S Application

• Applications
• Broadband Driver Amplifier
• IF Amplifier or gain stage for VSAT, LMDS, WLAN, and Cellular Systems dBm 12 11 10 0.
