SNA-176

DC-10 GHZ CASCADABLE GAAS MMIC AMPLIFIER

SNA-176 Features

* Cascadable 50 Ohm Gain Block 12dB Gain, +13dBm P1dB 1.5:1 Input and Output VSWR Operates From Single Supply Low Cost Stripline Mount Ceramic Package Hermetically Sealed Applications PA Driver Amplifier Cellular, PCS, GSM, UMTS IF Amplifier Wireless Data, Satellite Units dB dB dB

SNA-176 General Description

Sirenza Microdevices SNA-176 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface mountable stripline package. At 1950 MHz, this amplifier provides 12dB of gain when biased at 50mA. External DC decoupling capacitors determine low frequency response. The use of an external re.

SNA-176 Datasheet (258.73 KB)

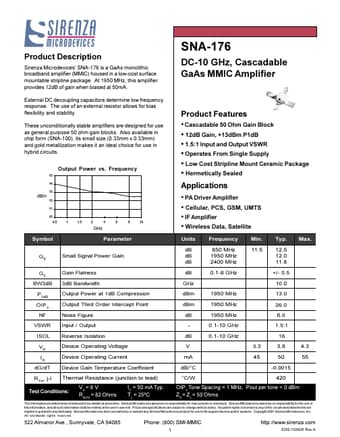

SNA-176 Datasheet Preview — Preview of SNA-176 PDF

Datasheet Details

Part number:

SNA-176

Manufacturer:

ETC

File Size:

258.73 KB

Description:

Dc-10 ghz cascadable gaas mmic amplifier.
