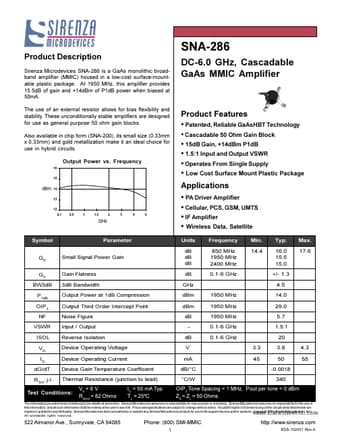

SNA-286 Datasheet, Amplifier, Sirenza Microdevices

SNA-286 Features

• Amplifier • Patented, Reliable GaAsHBT Technology • Cascadable 50 Ohm Gain Block • 15dB Gain, +14dBm P1dB • 1.5:1 Input and Output VSWR • Operates From Single Supply • Low Cost Surface Mount Plas

PDF File Details

Part number:

SNA-286

Manufacturer:

Sirenza Microdevices

File Size:

353.31kb

Download:

📄 Datasheet

Description:

Cascadable gaas mmic amplifier. Sirenza Microdevices SNA-286 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface-mountable plastic package.

SNA-286 Application

• Applications • PA Driver Amplifier • Cellular, PCS, GSM, UMTS • IF Amplifier • Wireless Data, Satellite Units dB dB dB dB GHz dBm dBm dB dBm 14 13
