SNA-400 Datasheet - SIRENZA MICRODEVICES

Cascadable GaAs MMIC Amplifier

SNA-400 Features

* Cascadable 50 Ohm Gain Block

* 13dB Gain, +17dBm P1dB

* 1.5:1 Input and Output VSWR

* Operates From Single Supply

* Chip Back Is Ground Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF Amplifier

* Wireless Da

SNA-400 General Description

Sirenza Microdevices’ SNA-400 is a GaAs monolithic broadband amplifier (MMIC) in die form. This amplifier provides 13dB of gain when biased at 65mA and 5.0V. External DC decoupling capacitors determine low frequency response. The use of an external resistor allows for bias flexibility and stability..

SNA-400 Datasheet (82.96 KB)

Preview of SNA-400 PDF

Datasheet Details

Part number:

SNA-400

Manufacturer:

SIRENZA MICRODEVICES

File Size:

82.96 KB

Description:

Cascadable gaas mmic amplifier.

📁 Related Datasheet

SNA-476 Cascadable GaAs MMIC Amplifier (SIRENZA MICRODEVICES)

SNA-486 GaAs MMIC Amplifier (SIRENZA MICRODEVICES)

SNA-100 Cascadable GaAs MMIC Amplifier (Stanford Microdevices)

SNA-100S Cascadable GaAs HBT MMIC Amplifier (SIRENZA MICRODEVICES)

SNA-176 DC-10 GHZ CASCADABLE GAAS MMIC AMPLIFIER (ETC)

SNA-186 Cascadable GaAs HBT MMIC Amplifier (SIRENZA MICRODEVICES)

SNA-200 Cascadable GaAs MMIC Amplifier (Sirenza Microdevices)

SNA-200S Cascadable GaAs HBT MMIC Amplifier (Sirenza Microdevices)

SNA-276 Cascadable GaAs MMIC Amplifier (Stanford Microdevices)

SNA-286 Cascadable GaAs MMIC Amplifier (Sirenza Microdevices)

TAGS

SNA-400 Cascadable GaAs MMIC Amplifier SIRENZA MICRODEVICES

Image Gallery

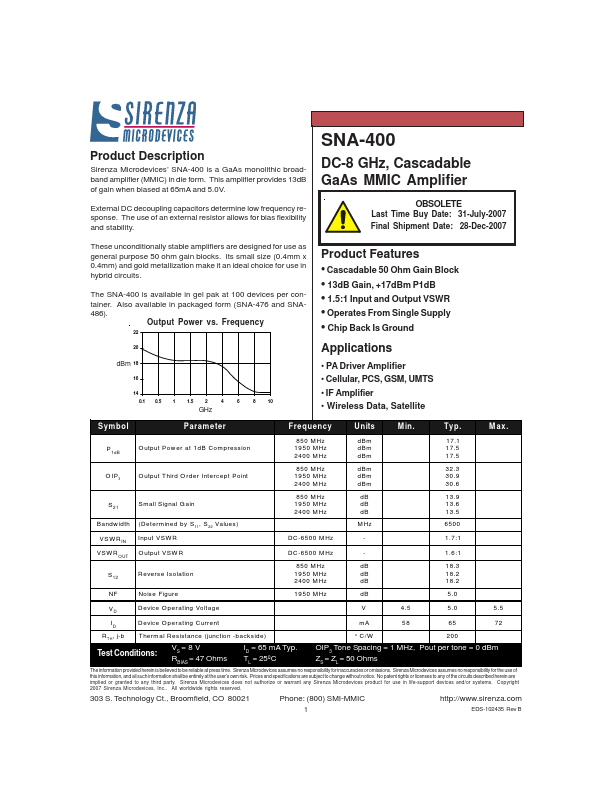

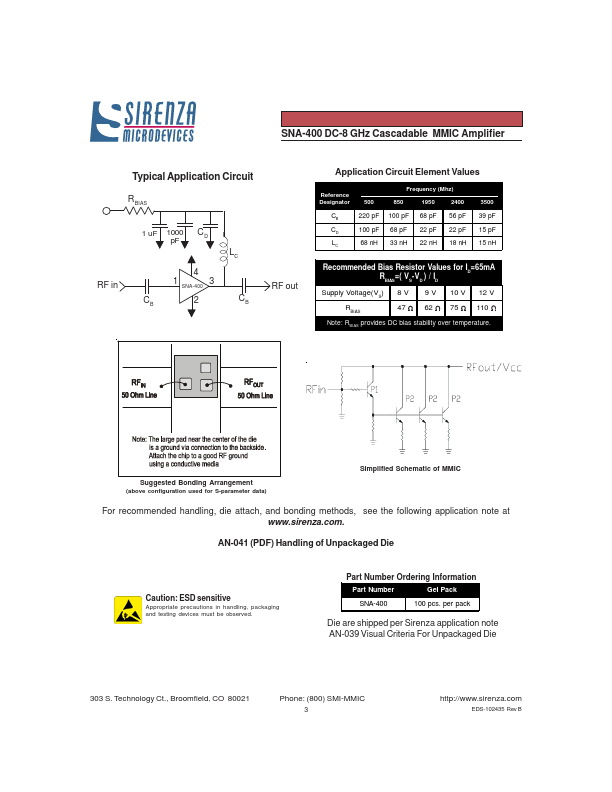

SNA-400 Datasheet Preview Page 2 SNA-400 Datasheet Preview Page 3
