HV633

128-Level Amplitude Gray-Shade Display Column Driver

HV633 Features

* HVCMOS® technology

* 5.0V CMOS inputs

* Capable of 128 levels of gray shading

* Modulation voltage up to +80V

* 24MHz data throughput rate

* 32 outputs per device (can be cascaded)

* Pin-programmable shift direction (DIR)

* D/A conver

HV633 General Description

The HV633 is a 32-channel driver IC for gray shade display use. It is designed to produce varying output voltages between 3.0 - 80V. This amplitude modulation at the output is facilitated by an external ramp voltage VR. See Theory of Operation for detailed explanation. This device consists of dual 1.

HV633 Datasheet (382.04 KB)

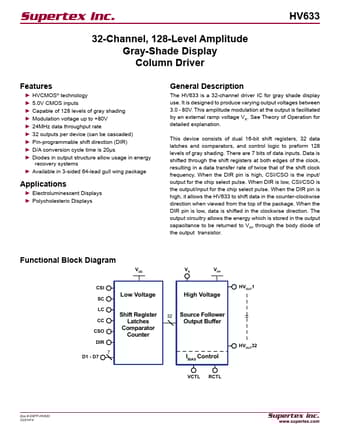

Preview of HV633 PDF

Datasheet Details

Part number:

HV633

Manufacturer:

Supertex

File Size:

382.04 KB

Description:

128-level amplitude gray-shade display column driver.
