HV66 - 32-Channel LCD Driver

Datasheet Summary

Description

The HV66 is a low voltage serial to high voltage parallel converter with push-pull outputs.

This device has been designed for use as a driver circuit for LCD displays.

It can also be used in any application requiring multiple output high voltage current sourcing and sinking capabilities.

Features

  • HVCMOS® technology.
  • 32 push-pull CMOS output up to 60V.
  • Low power level shifting.
  • Shift register speed 5.0MHz.
  • Latched data outputs.
  • Bidirectional shift register (DIR).
  • Backplane output General.

📥 Download Datasheet

Datasheet preview – HV66

Datasheet Details

Part number HV66
Manufacturer Supertex Inc
File Size 410.06 KB
Description 32-Channel LCD Driver
Datasheet download datasheet HV66 Datasheet
Additional preview pages of the HV66 datasheet.

📁 Similar Datasheet

  • HV6 - Fast Switching High Voltage Rectifier (Sirocco)
  • HV60 - 32-Channel Liquid Crystal Display Driver (Supertex)
  • HV600S10 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S15 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S20 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV632 - 256 Gray-Shade High Voltage Driver (Supertex)
  • HV633 - 128-Level Amplitude Gray-Shade Display Column Driver (Supertex)
  • HV6506 - 32-Channel LCD Driver (Supertex)
  • HV6810 - 10-Channel Serial-Input Latched Display Driver (Microchip)
  • HV6X1P8 - SHORT PROTECTOR (Frontier Electronics)
Other Datasheets by Supertex Inc
  • HV6008 - 32-Channel 40V Liquid Crystal Display Row Driver
  • HV62208 - 32-Channel 256 Gray-Shade High Voltage Driver
  • HV623 - 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver
  • HV6810 - 10-Channel Serial-Input Latched Display Driver

Full PDF Text Transcription

Click to expand full text

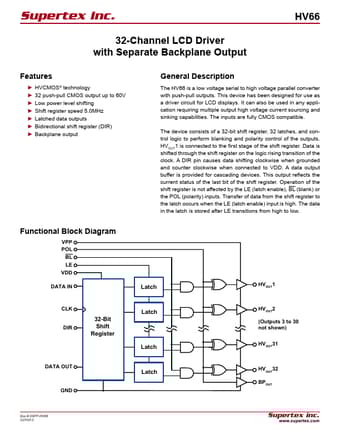

Supertex inc. 32-Channel LCD Driver with Separate Backplane Output HV66 Features ►►HVCMOS® technology ►►32 push-pull CMOS output up to 60V ►►Low power level shifting ►►Shift register speed 5.0MHz ►►Latched data outputs ►►Bidirectional shift register (DIR) ►►Backplane output General Description The HV66 is a low voltage serial to high voltage parallel converter with push-pull outputs. This device has been designed for use as a driver circuit for LCD displays. It can also be used in any application requiring multiple output high voltage current sourcing and sinking capabilities. The inputs are fully CMOS compatible. The device consists of a 32-bit shift register, 32 latches, and control logic to perform blanking and polarity control of the outputs.
