HV6810 - 10-Channel Serial-Input Latched Display Driver

Datasheet Summary

Description

The HV6810 is a monolithic integrated circuit designed to drive a dot matrix or segmented vacuum fluorescent display (VFD).

These devices feature a serial data output to cascade additional devices for large displays.

Features

  • High output voltage 80V.
  • High speed 5MHz @5.0VDD.
  • Low power IBB ≤ 0.1mA (all high).
  • Active pull down 100µA min @25OC.
  • Output source current 25mA @60V VBB.
  • Each device drives 10 lines.
  • High-speed serially-shifted data input.
  • 5.0V CMOS-compatible inputs.
  • Latches on all driver outputs.
  • Pin-compatible replacement for UCN5810A and TL4810A, TL4810B.

📥 Download Datasheet

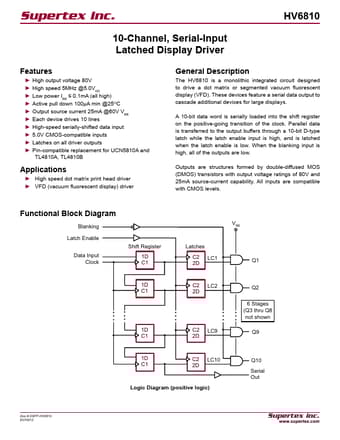

Datasheet preview – HV6810

Datasheet Details

Part number HV6810
Manufacturer Supertex Inc
File Size 460.84 KB
Description 10-Channel Serial-Input Latched Display Driver
Datasheet download datasheet HV6810 Datasheet
Additional preview pages of the HV6810 datasheet.

📁 Similar Datasheet

  • HV6810 - 10-Channel Serial-Input Latched Display Driver (Microchip)
  • HV6 - Fast Switching High Voltage Rectifier (Sirocco)
  • HV60 - 32-Channel Liquid Crystal Display Driver (Supertex)
  • HV600S10 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S15 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S20 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV632 - 256 Gray-Shade High Voltage Driver (Supertex)
  • HV633 - 128-Level Amplitude Gray-Shade Display Column Driver (Supertex)
  • HV6506 - 32-Channel LCD Driver (Supertex)
  • HV6X1P8 - SHORT PROTECTOR (Frontier Electronics)
Other Datasheets by Supertex Inc
  • HV6008 - 32-Channel 40V Liquid Crystal Display Row Driver
  • HV62208 - 32-Channel 256 Gray-Shade High Voltage Driver
  • HV623 - 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver
  • HV66 - 32-Channel LCD Driver

Full PDF Text Transcription

Click to expand full text
Supertex inc. HV6810 10-Channel, Serial-Input Latched Display Driver Features ►►High output voltage 80V ►►High speed 5MHz @5.0VDD ►►Low power IBB ≤ 0.1mA (all high) ►►Active pull down 100µA min @25OC ►►Output source current 25mA @60V VBB ►►Each device drives 10 lines ►►High-speed serially-shifted data input ►►5.0V CMOS-compatible inputs ►►Latches on all driver outputs ►►Pin-compatible replacement for UCN5810A and TL4810A, TL4810B Applications ►► High speed dot matrix print head driver ►► VFD (vacuum fluorescent display) driver General Description The HV6810 is a monolithic integrated circuit designed to drive a dot matrix or segmented vacuum fluorescent display (VFD). These devices feature a serial data output to cascade additional devices for large displays.
