PDC0302 - SMD POWER INDUCTORS

SMD POWER INDUCTORS 1.

PART NO.

EXPRESSION : PDC0302 SERIES PDC03021R0MZF www.datasheet4u.com (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.0uH (d) Tolerance code : M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : B C I G I 100 A PCB Pattern A 3.5±0.3 B 3.0±0.3 C 2.2±0.3 G 0.80 Ref.

H 3.50 Ref.

I 1.60 Ref.

3.

SCHEMATIC : 4.

MATERIALS : d a b c (a) Core : DRT Ferrite Core (b) Wire : Enamelled Coppe

PDC0302_SuperworldElectronics.pdf

Preview of PDC0302 PDF

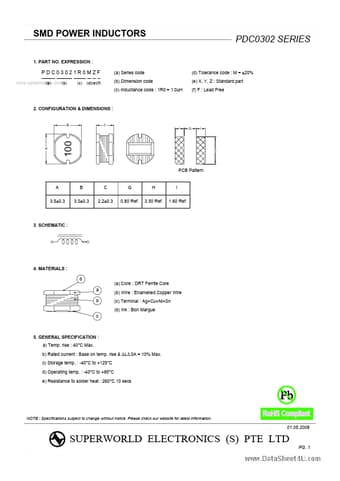

PDC0302 Datasheet Preview Page 2 PDC0302 Datasheet Preview Page 3
