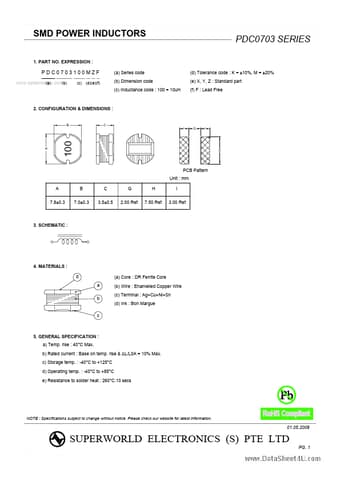

PDC0703 - SMD POWER INDUCTORS

SMD POWER INDUCTORS 1.

PART NO.

EXPRESSION : PDC0703 SERIES PDC0703100MZF www.datasheet4u.com (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 100 = 10uH (d) Tolerance code : K = ±10%, M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : B C I G I 100 A PCB Pattern Unit : mm A 7.8±0.3 B 7.0±0.3 C 3.5±0.5 G 2.00 Ref.

H 7.50 Ref.

I 3.00 Ref.

3.

SCHEMATIC : 4.

MATERIALS : d a b (a) Core : DR Ferrite Core (b) Wire : Ename
