PDC0403 Datasheet - Superworld Electronics

PDC0403 - SMD POWER INDUCTORS

SMD POWER INDUCTORS 1.

PART NO.

EXPRESSION : PDC0403 SERIES PDC04031R0MZF www.datasheet4u.com (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.0uH (d) Tolerance code : K = ±10%, M = ±20% (e) X, Y, Z : Standard products (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : B C I G I 100 A PCB Pattern A 4.5±0.3 B 4.0±0.3 C 3.2±0.3 G 1.50 Ref.

H 4.50 Ref.

I 1.75 Ref.

3.

SCHEMATIC : 4.

MATERIALS : d a b (a) Core : DR Ferrite Core (b) Wire : Ena

PDC0403_SuperworldElectronics.pdf

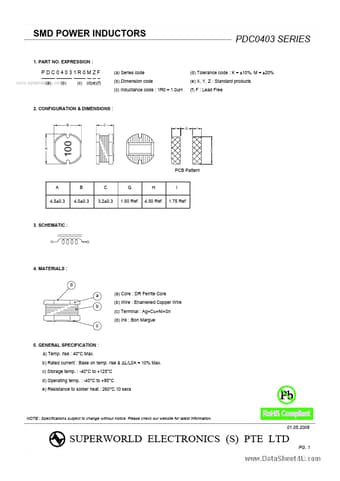

Preview of PDC0403 PDF
