PDC0504 Datasheet - Superworld Electronics

PDC0504 - SMD POWER INDUCTORS

SMD POWER INDUCTORS 1.

PART NO.

EXPRESSION : PDC0504 SERIES PDC0504100MZF www.datasheet4u.com (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 100 = 10uH (d) Tolerance code : K = ±10%, M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : B C I G I 100 A PCB Pattern Unit : mm A 5.8±0.3 B 5.2±0.3 C 4.50±0.35 G 1.70 Ref.

H 5.50 Ref.

I 2.15 Ref.

3.

SCHEMATIC : 4.

MATERIALS : d a b c (a) Core : DR Ferrite Core (b) Wire : E

PDC0504_SuperworldElectronics.pdf

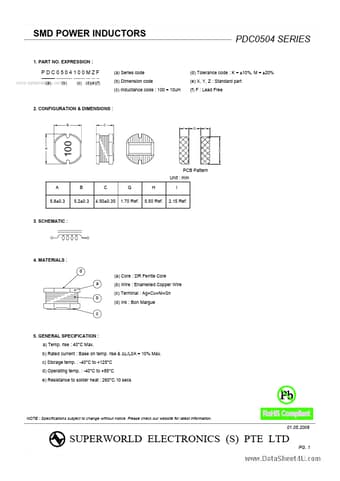

Preview of PDC0504 PDF
PDC0504 Datasheet Preview Page 2 PDC0504 Datasheet Preview Page 3

Datasheet Details

Part number:

PDC0504

Manufacturer:

Superworld Electronics

File Size:

400.55 KB

Description:

Smd power inductors.
