PDC0502 SMD POWER INDUCTORS

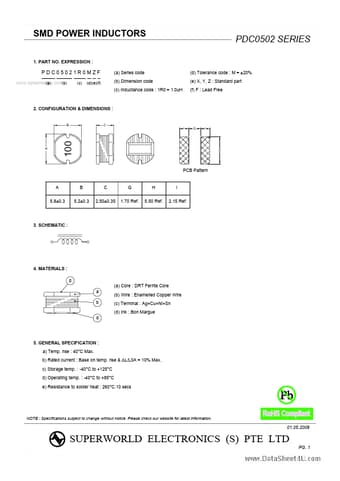

SMD POWER INDUCTORS 1. PART NO. EXPRESSION : PDC0502 SERIES PDC05021R0MZF www.datasheet4u.com (a) (b) (c) (d)(e)(f) (a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.0uH (d) Tolerance code : M = ±20% (e) X, Y, Z : Standard part (f) F : Lead Free 2. CONFIGURATION & DIMENSIONS : B C I G I 100 A PCB Pattern A 5.8±0.3 B 5.2±0.3 C 2.50±0.35 G 1.70 Ref. H 5.50 Ref. I 2.15 Ref. 3. SCHEMATIC : 4. MATERIALS : d (a) Core : DRT Ferrite Core a b d (b) Wire : Enamelled Cop.
