PDC0735C Datasheet - Superworld Electronics

PDC0735C_SuperworldElectronics.pdf

Preview of PDC0735C PDF
PDC0735C Datasheet Preview Page 2 PDC0735C Datasheet Preview Page 3

Datasheet Details

Part number:

PDC0735C

Manufacturer:

Superworld Electronics

File Size:

289.38 KB

Description:

Smd power inductors.

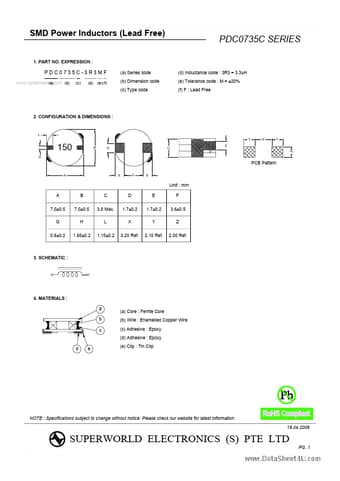

PDC0735C, SMD POWER INDUCTORS

SMD Power Inductors (Lead Free) PDC0735C SERIES 1.

PART NO.

EXPRESSION : PDC0735C-3R3MF www.datasheet4u.com (a) (b) (c) (d) (e)(f) (a) Series code (b) Dimension code (c) Type code (d) Inductance code : 3R3 = 3.3uH (e) Tolerance code : M = ±20% (f) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : L Y X Y G PCB Pattern A E F E Unit : mm A 7.0±0.5 G 0.6±0.2 B 7.0±0.5 H 1.65±0.2 C 3.5 Max.

L 1.15±0.2 D 1.7±0.2 X 3.20 Ref.

E 1.7±0.2 Y 2.10 Ref.

F 3.6±0.5 Z 2.00 Ref.

3.

SCHEMATIC : 4.

MATERIA
