PDC0745C Datasheet - Superworld Electronics

PDC0745C SMD POWER INDUCTORS

SMD Power Inductors (Lead Free) PDC0745C SERIES 1. PART NO. EXPRESSION : PDC0745C-1R5MF www.datasheet4u.com (a) (b) (c) (d) (e)(f) (a) Series code (b) Dimension code (c) Type code (d) Inductance code : 1R5 = 1.5uH (e) Tolerance code : M = ±20% (f) F : Lead Free 2. CONFIGURATION & DIMENSIONS : L Y X Y G PCB Pattern A E F E Unit : mm A 7.0±0.5 G 0.6±0.2 B 7.0±0.5 H 1.65±0.2 C 4.5 Max. L 1.15±0.2 D 1.7±0.2 X 3.20 Ref. E 1.7±0.2 Y 2.10 Ref. F 3.6±0.5 Z 2.00 Ref. 3. SCHEMATIC : 4. MATERIA.

PDC0745C Datasheet (290.49 KB)

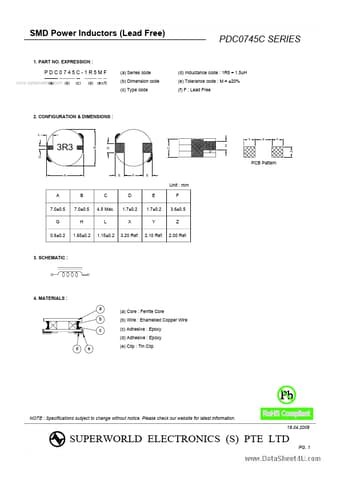

Preview of PDC0745C PDF

Datasheet Details

Part number:

PDC0745C

Manufacturer:

Superworld Electronics

File Size:

290.49 KB

Description:

Smd power inductors.
