Datasheet Details
Part number:
SWDY1008-1R0MF-NC, SWDY1008-NC
Manufacturer:
Superworld
File Size:
203.10 KB
Description:
High current power inductors.
Note:
This datasheet PDF includes multiple part numbers: SWDY1008-1R0MF-NC, SWDY1008-NC.
Please refer to the document for exact specifications by model.

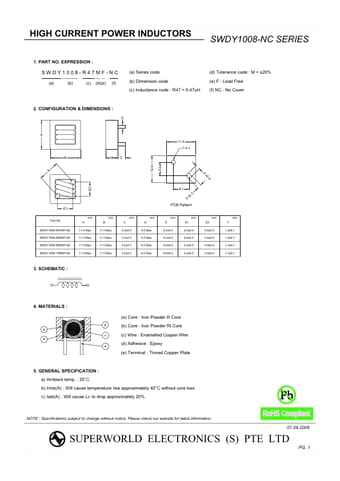

SWDY1008-1R0MF-NC, SWDY1008-NC, HIGH CURRENT POWER INDUCTORS
www.DataSheet.co.kr HIGH CURRENT POWER INDUCTORS 1.
PART NO.
EXPRESSION : SWDY1008-NC SERIES SWDY1008-R47MF-NC (a) (b) (c) (d)(e) (f) (a) Series code (b) Dimension code (c) Inductance code : R47 = 0.47uH (d) Tolerance code : M = ±20% (e) F : Lead Free (f) NC : No Cover 2.
CONFIGURATION & DIMENSIONS : F A 11.5 F+0.3 B D C 12.0 E2 E 0 F+ .6 E2 E1 F+ 0 .3 E1 mm A 11.0 Max.
11.0 Max.
11.0 Max.
11.0 Max.
B 11.5 Max.
11.5 Max.
11.5 Max.
11.5 Max.
mm C 3.5±0.5 3.5±0.5 3.5±0.5 3.5±0.5 mm
